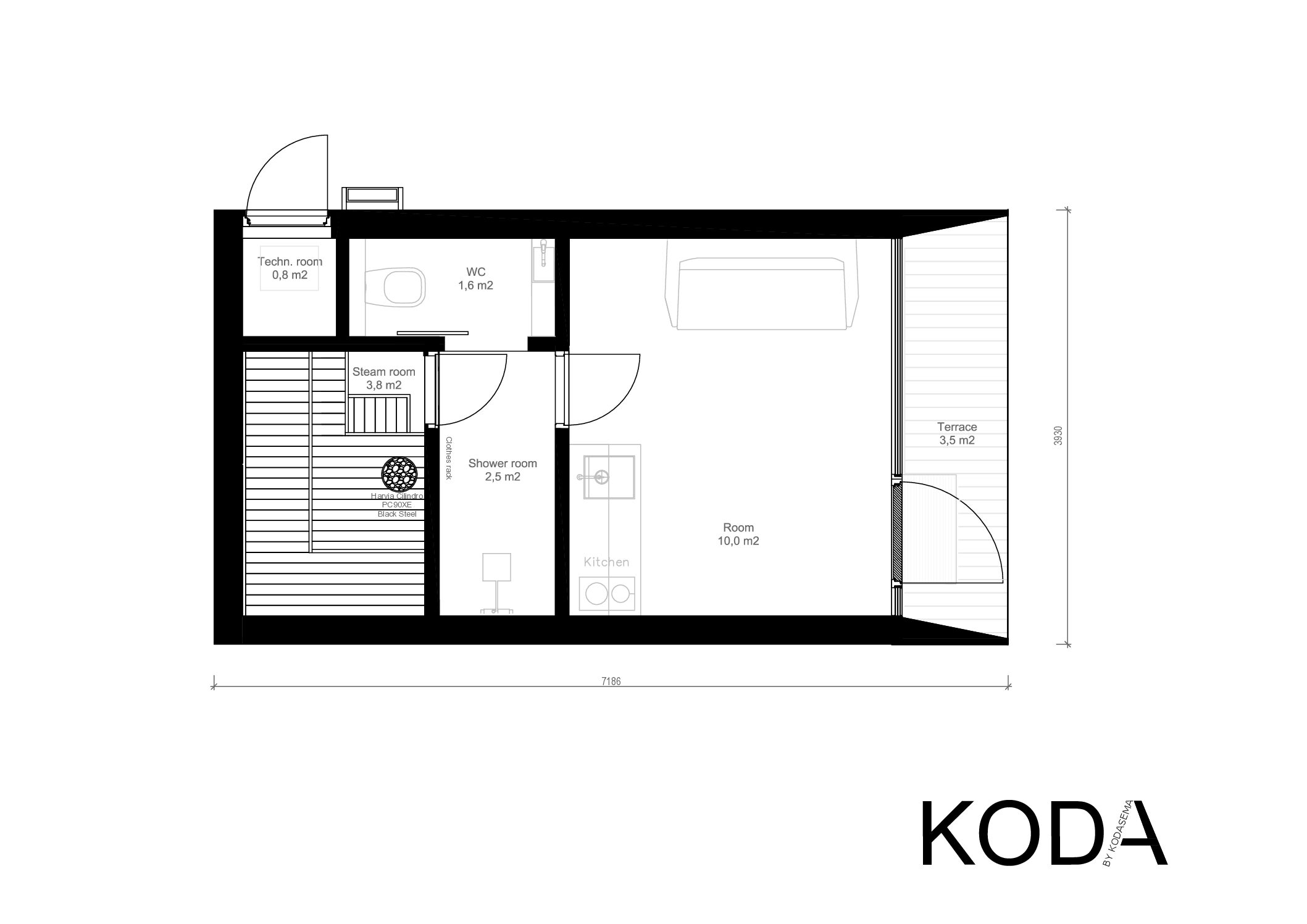

| Gross buildable area | 30.8 sqm |
|---|---|
| Usable area | 21.2 sqm |
| Weight ca | 10.5 tonnes |
| External: | L7850, W3930, H3400 mm / |
| U values range btw: | 0.16-0.202 W/m2K |

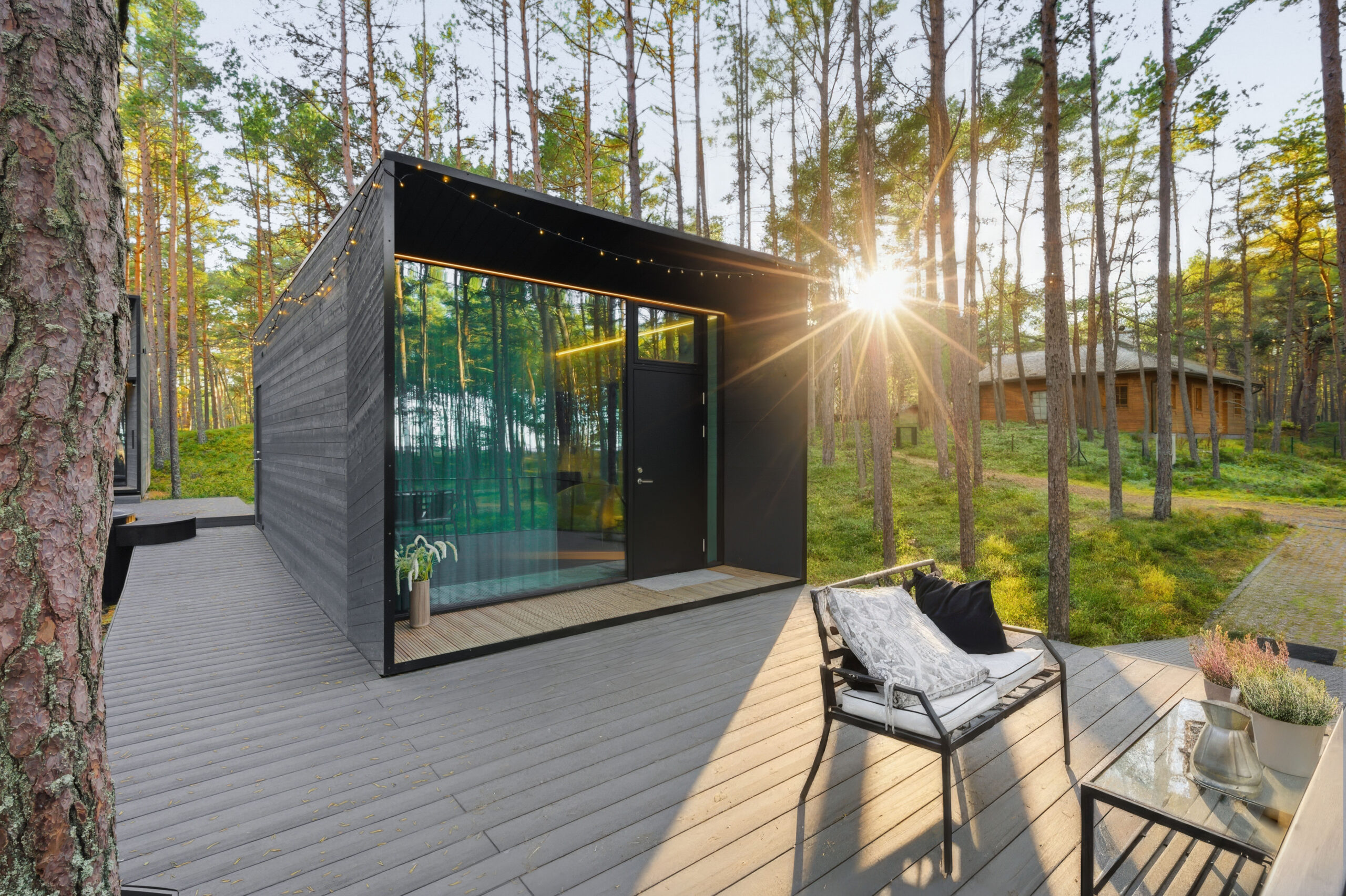

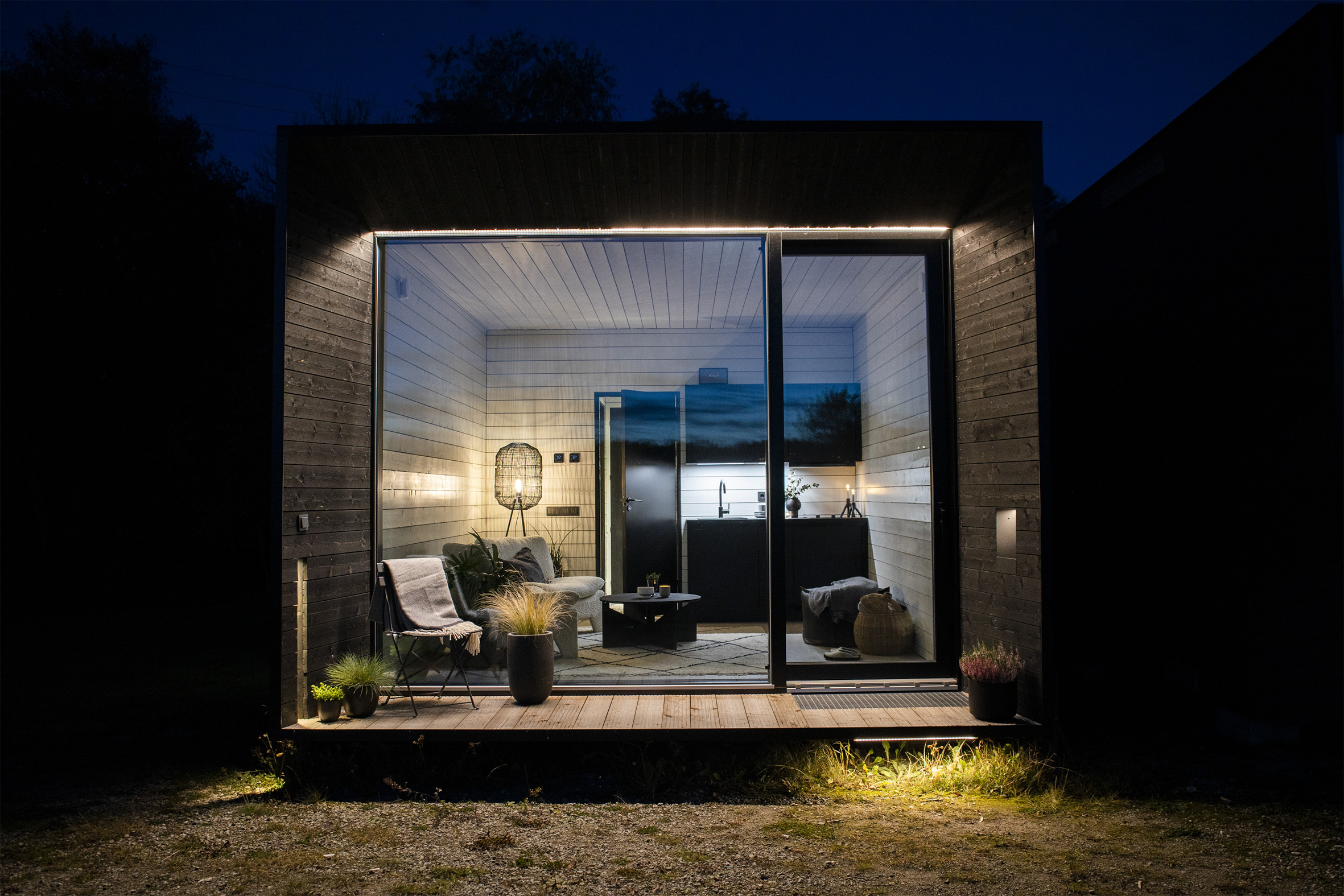

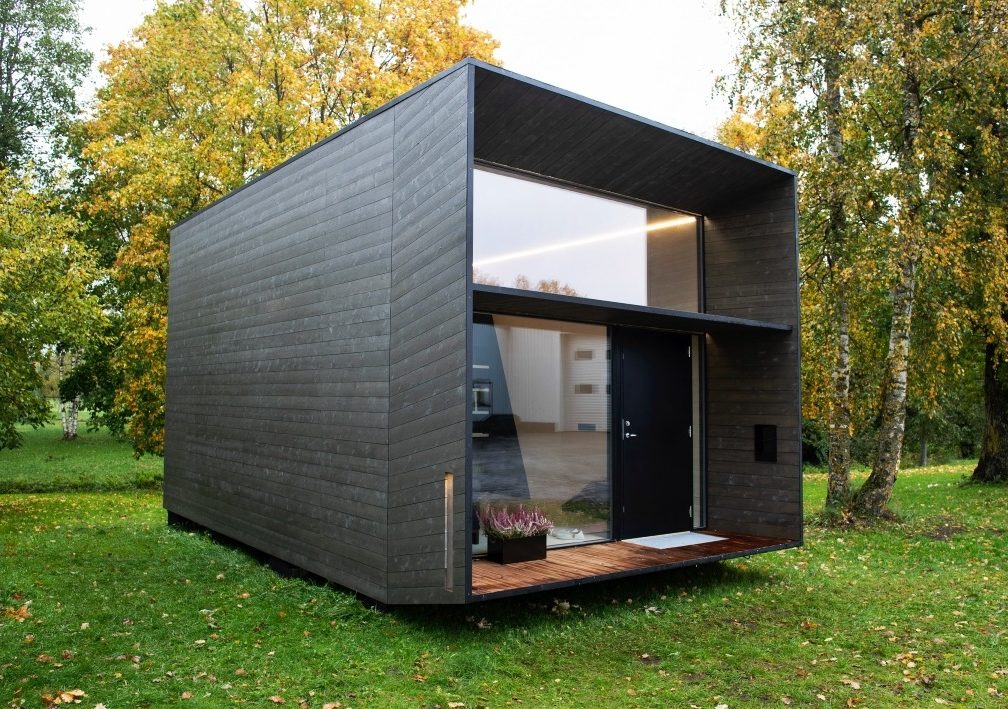

Our modern and stylish compact sauna is built for design conscious clients. Sanctuary of warmth and calm, perfect for rewinding, relaxing and meditation, a place to treat your soul and body. Enhanced from our Compact series tiniest model, perfected with a sauna section to offer home SPA experience for you and your friends. In livingroom you will find a compact and stylish kitchenette and enough space for cozy lounge with spectacular view from ceiling to floor window in the front. Mineral wool insulation, electrical floor heating and triple glazed windows in standard configuration keep you comfy in low as well as high outside temperatures.
Stylish minimalist design
Nordic aesthetic with thoughtful finishes for a premium sauna.
Versatile installation
Perfect as a backyard retreat, hotel spa feature, or rental amenity.
All-in-one wellness unit
Combines lounge area, kitchenette, shower and steam room in a single compact luxury sauna.
Iconic KODA design
That elevates private gardens, resorts, and premium rentals.
STANDARD EQUIPMENT
Included in the price
STRUCTURE AND FINISHES
- Timber structure
- Timber cladding (color painted)
- Insulated walls, ceiling and floor (thick insulation)
- Front terrace with sunshade
- Wooden front door (with Assa Abloy lock)
- Signature compact front facade with triple-glazed wooden frame window
- Ceiling to floor windows and back door in steam room (customizable w/o windows)

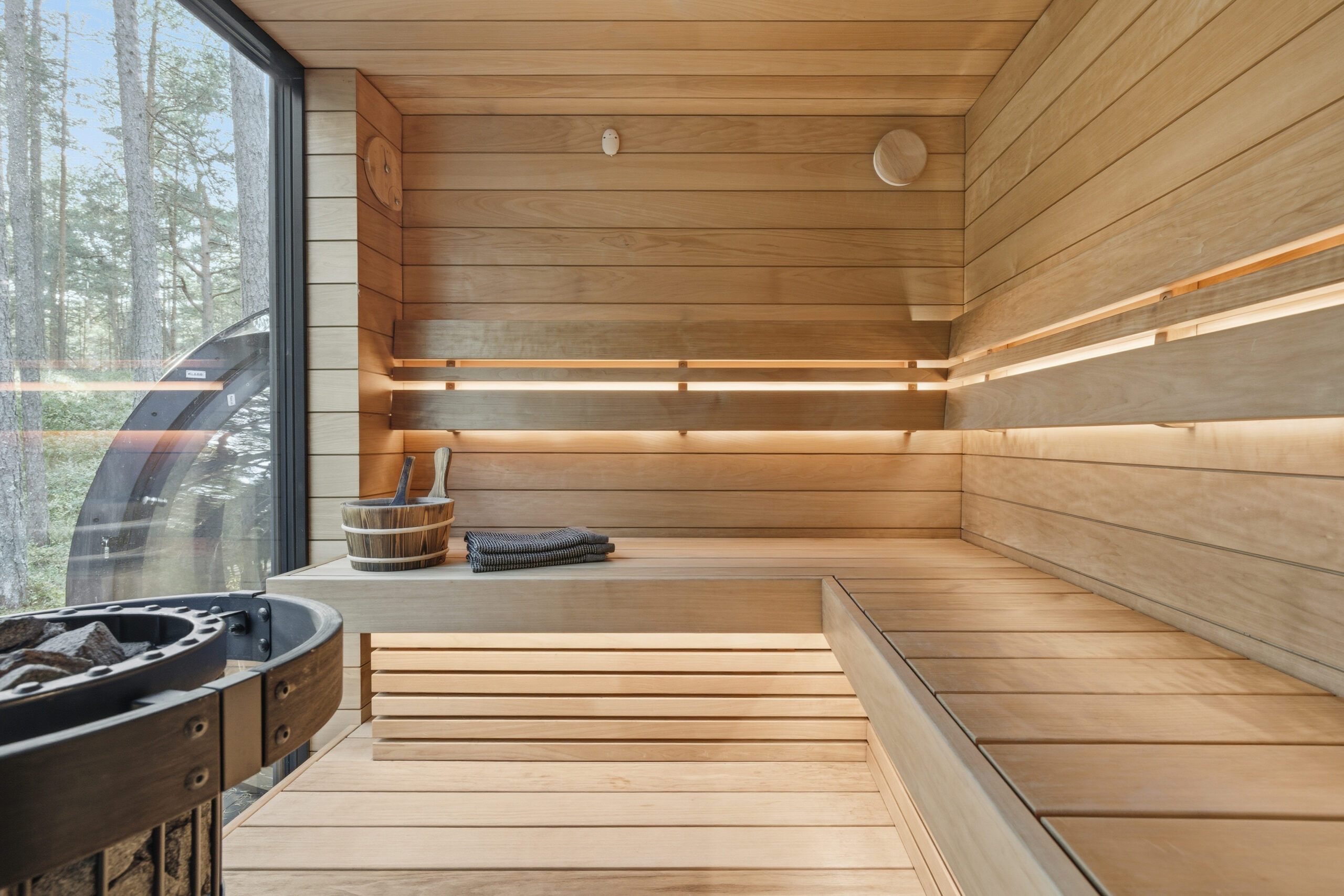

- Fully finished steam room with sauna benches
- Ladder for rainwater drainage
Show more
- MEP – Mechanical, Electrical & Plumbing
- Electrical sauna heater
- EU-standard electrical installation
- Electrical cables integrated in panels, switches and sockets
- Electrical floor heating (2 zones)
- LED lighting in all rooms, incl steam room
- In technical room:
- water boiler
- ventilation system
- electrical connection 3PH x 20A
- water and plumbing connections
- water filters and pressure reducer
- Interior Finishes and Furnishing:
- Smooth wooden boards on walls
- Laminate floor cover
- Sauna benches
- Kitchenette readiness
- Fully finished, tiled bathroom and toilet with sanitary equipment- sink and toilet
premium equipment
(not included in standard equipment):
- Side window, narrow
- Plywood on walls and ceiling
- Natural parquet floor
- Kitchenette:
- Kitchen cabinets
- Sink
- 2-zone stove top
- Built in fridge
- LED lights and sockets)
- additional optional extras for kitchen:
- Kitchen hood
- Premium mixers in kitchenette
- Premium mixers in bathroom
- Premium toilet
- Cooling system with heat pump (without exterior parts)
- Instantaneous water heater Stiebel Eltron (requires 3x40A)
- Fenix Wifi floor heating controller
- Dimmable LEDs inside and outside
- Wifi operated sauna heater
For your KODA arrival, what do you need to prepare
ground with levelled footing with sufficient weight-bearing capacity
(no full foundation needed)
connection points for water, electricity
and sewage.
Crane for unloading and one day for installation (local certified specialists to connect to water, sewage, electricity)

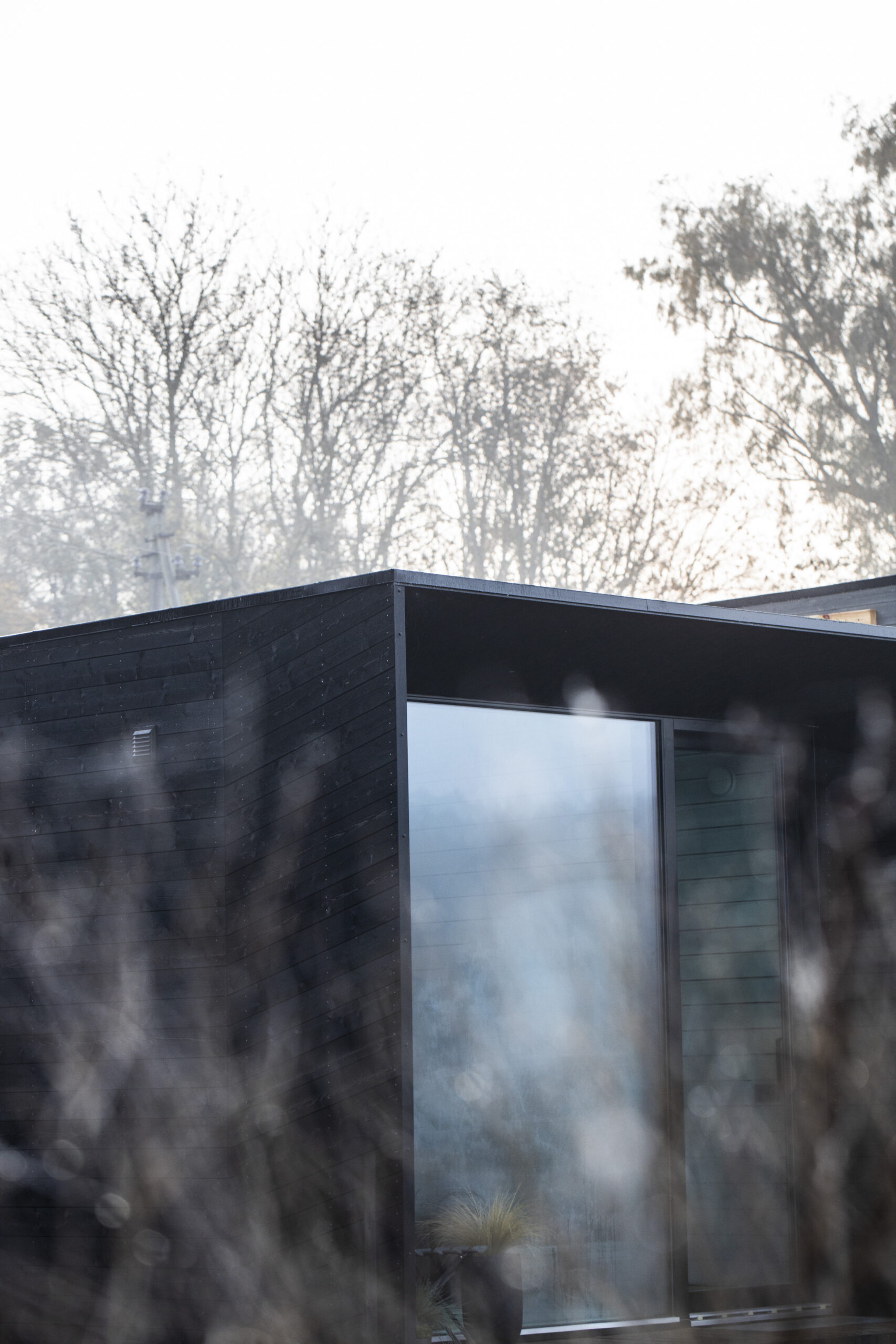

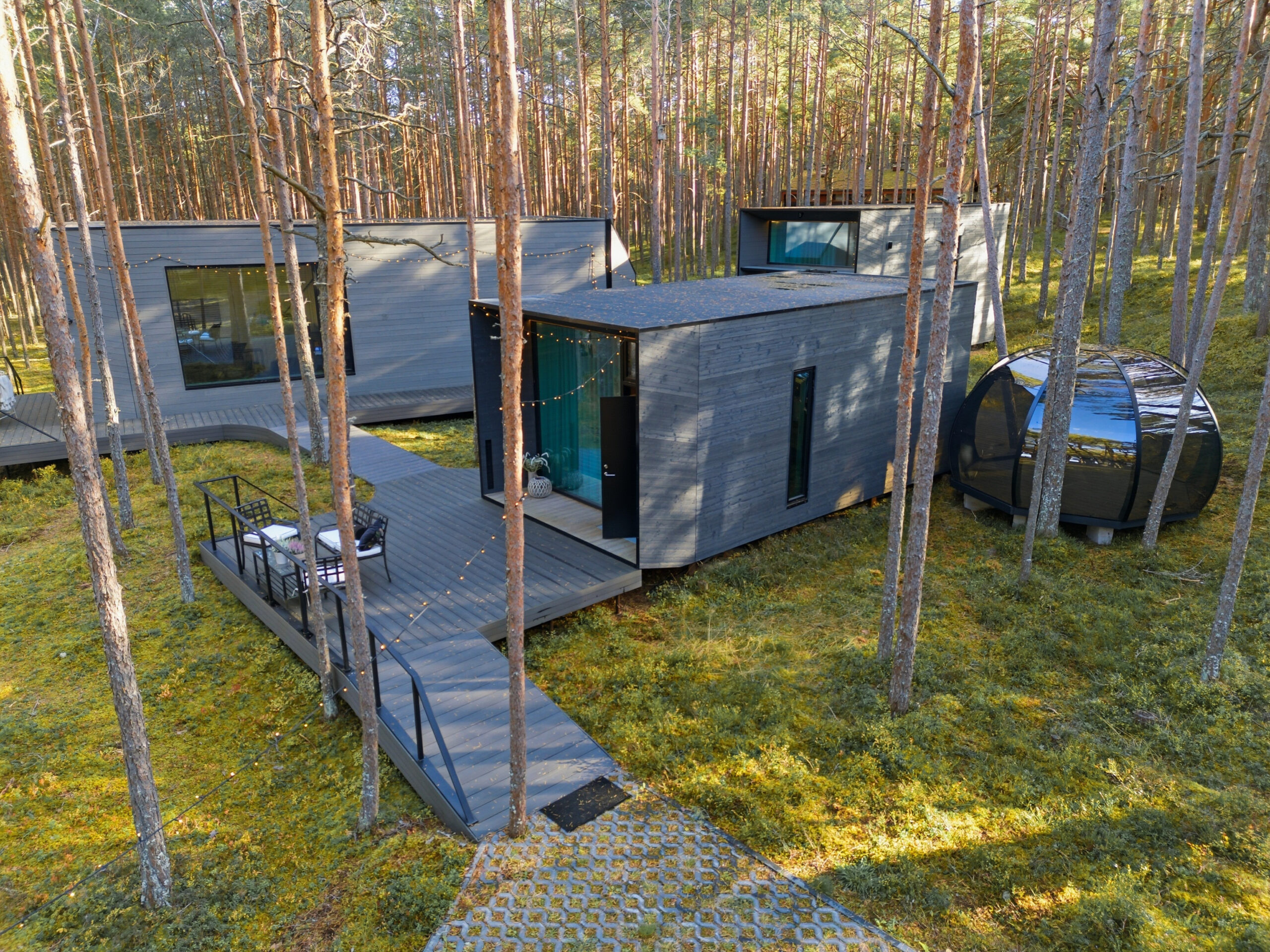

KODA EXTERIOR FINISH

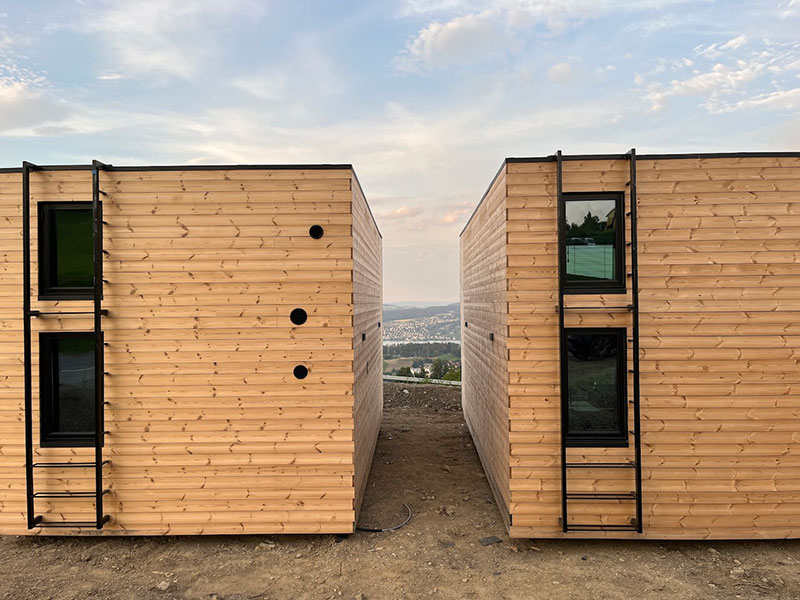

Standard solution: timber cladding spruce / pine with sikkens rubbol facade special
Wood is authentic, eco-friendly, healthy and the only truly renewable construction material.
AB grade timber is industrially primed and coated on all three sides. The timber is sourced according to FSC and PEFC sustainability principles and produced according to European standard EN 14915:2013.
KODA color options
Cement composite panels
Composite panels consisting of a mixture of wood particles and cement called the Cement Bonded Particle Board (CBPB). It combines the flexibility of wood with the strength and durability of cement, allowing a wide range of applications.
Aluminium cladding
Composite panels are light, strong, easy to clean and with a great variety of applications. We suggest using black Albond 9000 with A2 fire resistance level.
FLOORING OPTIONS

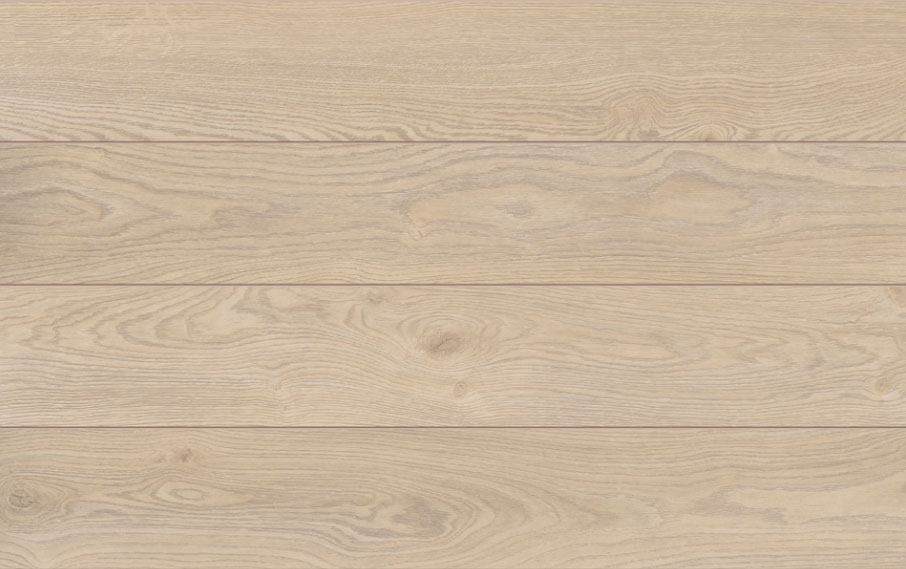

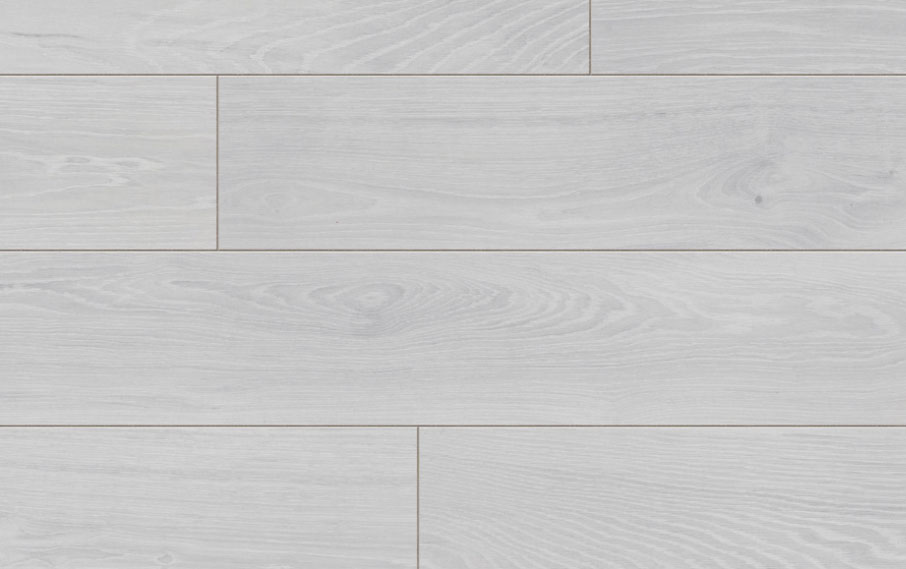

STANDARD FINISH: LAMINATE FLOOR
In standard your KODA comes with laminate floor. Laminate flooring offers the beauty of wood with exceptional durability. It’s stylish, easy to maintain, and perfect for creating a warm, inviting space in any home or office.

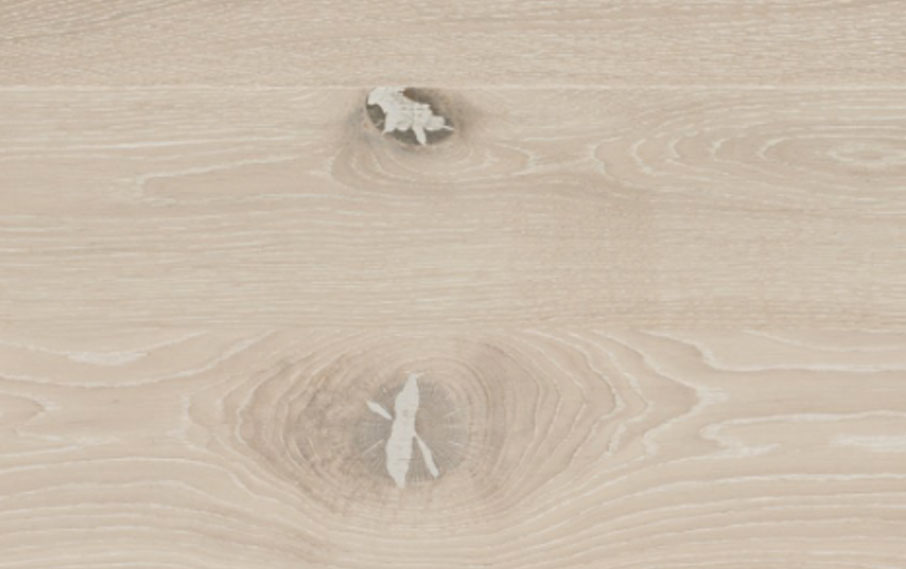

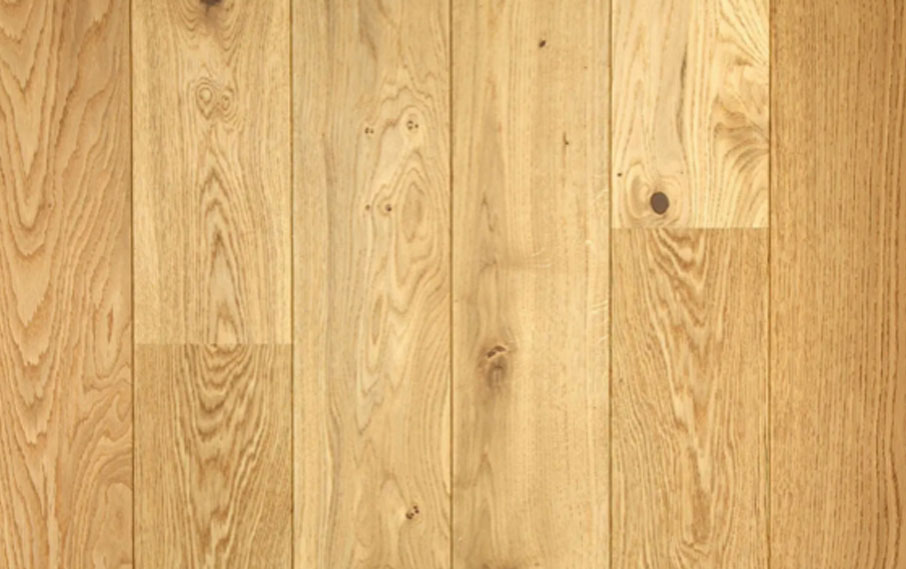

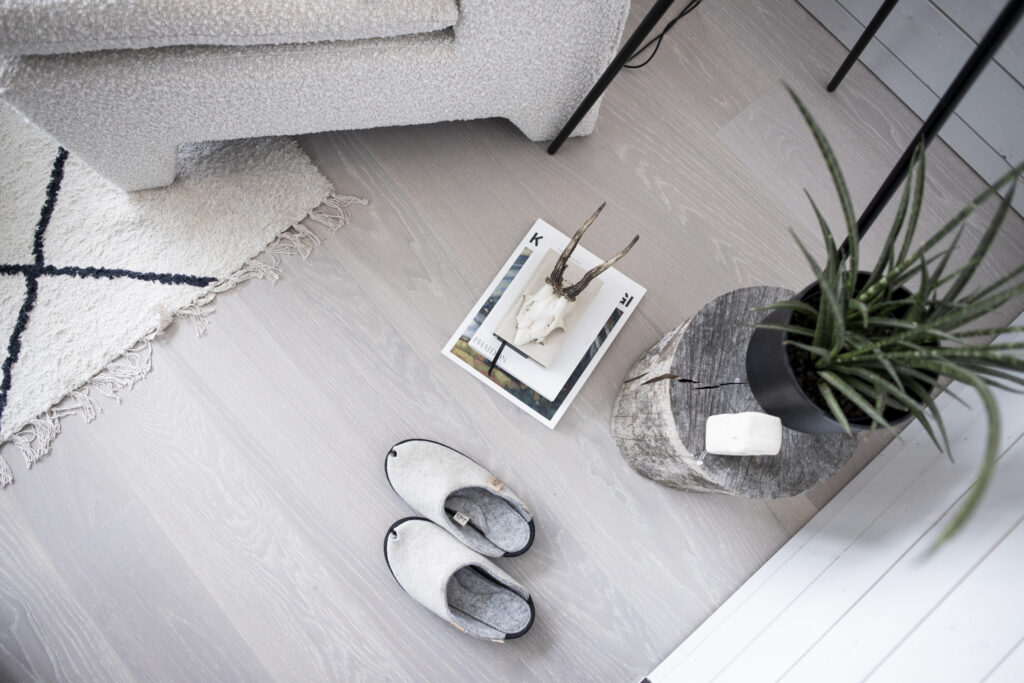

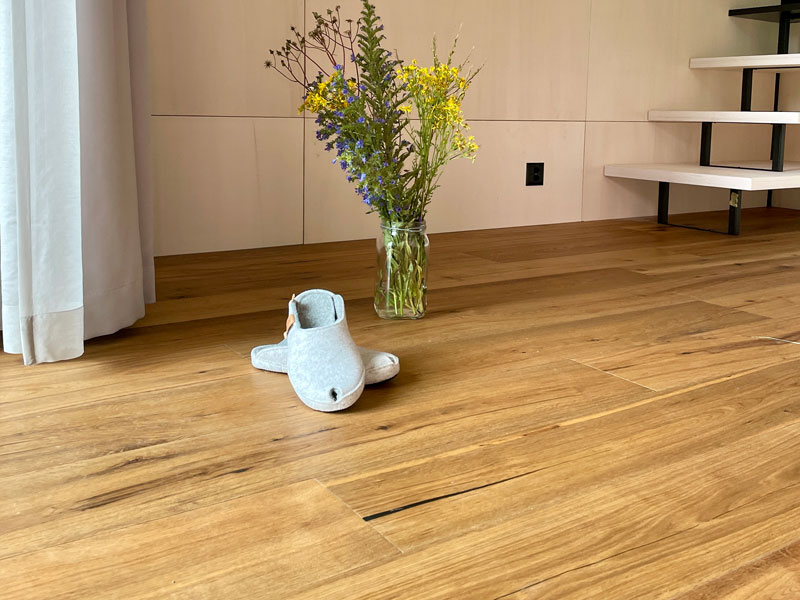

PREMIUM – NATURAL PARQUET FLOOR or OILED PARQUET FLOOR
For those who appreciate the timeless elegance of real wood, KODA also offers natural wooden parquet in light or dark oak, as well as beautifully finished natural oiled parquet. This premium flooring option brings a rich, organic character to your interior, enhancing both warmth and sophistication.

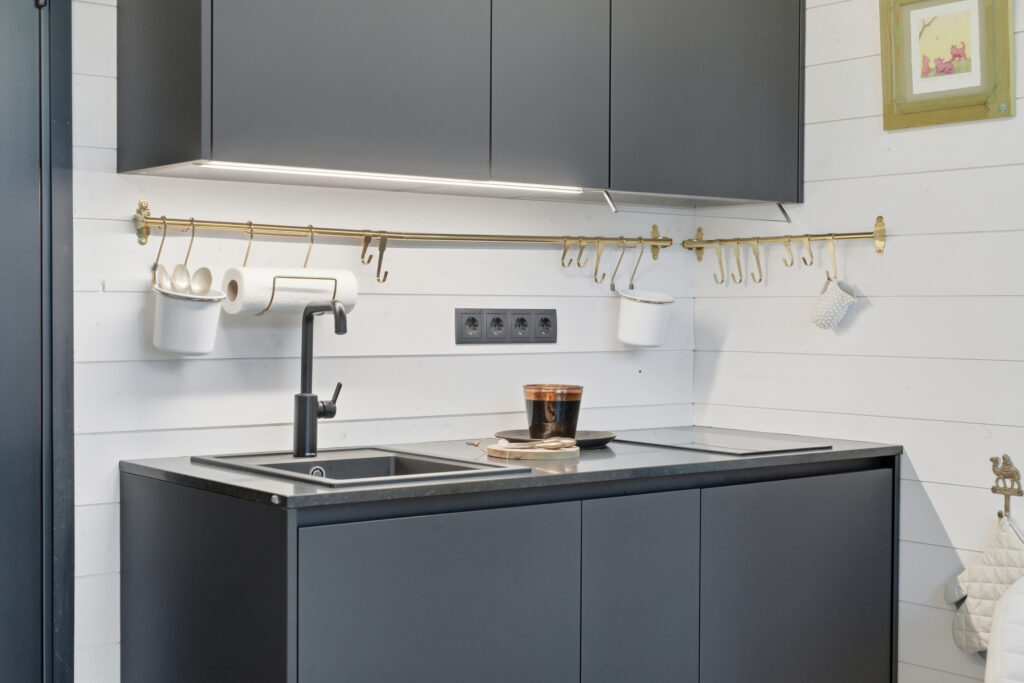

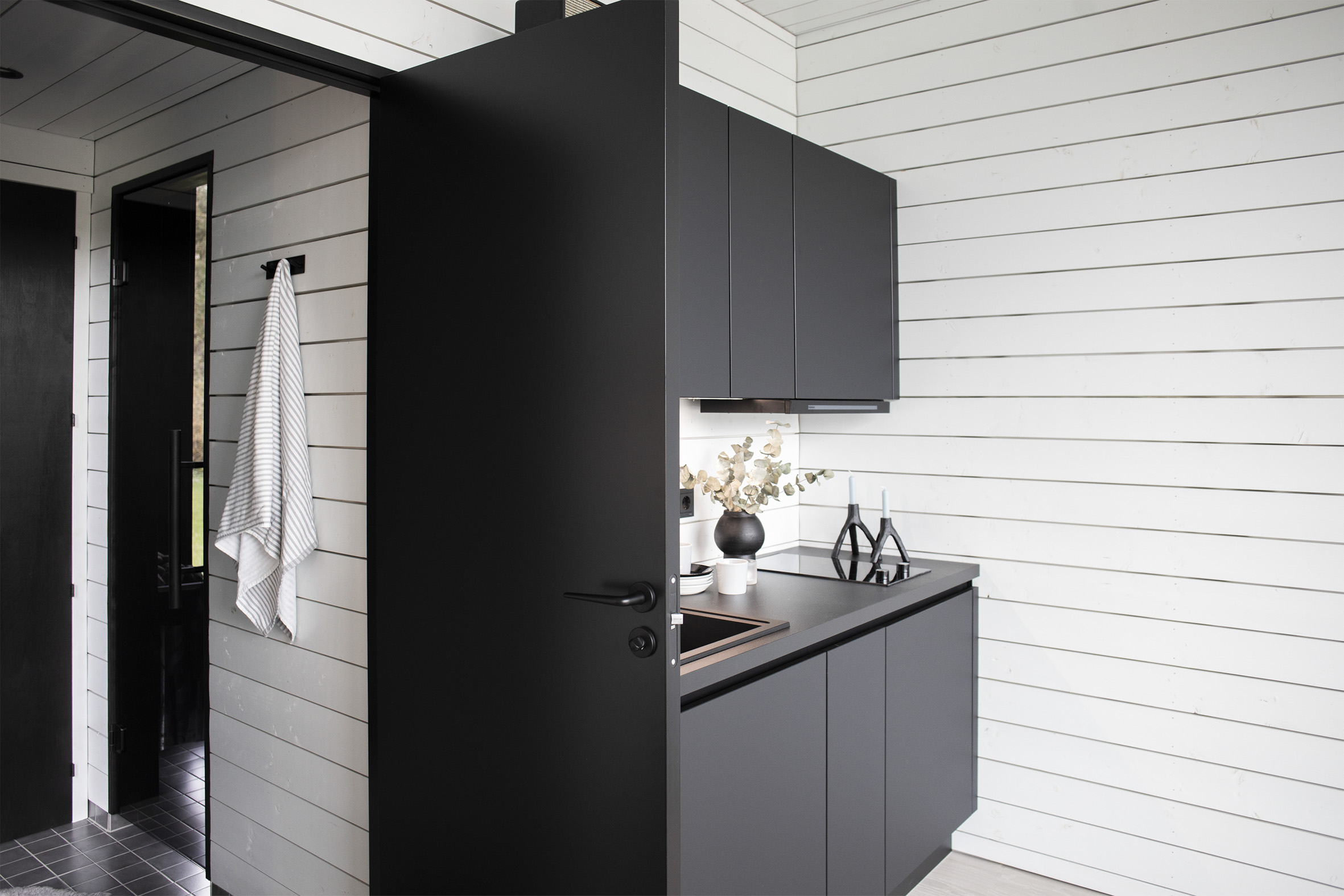

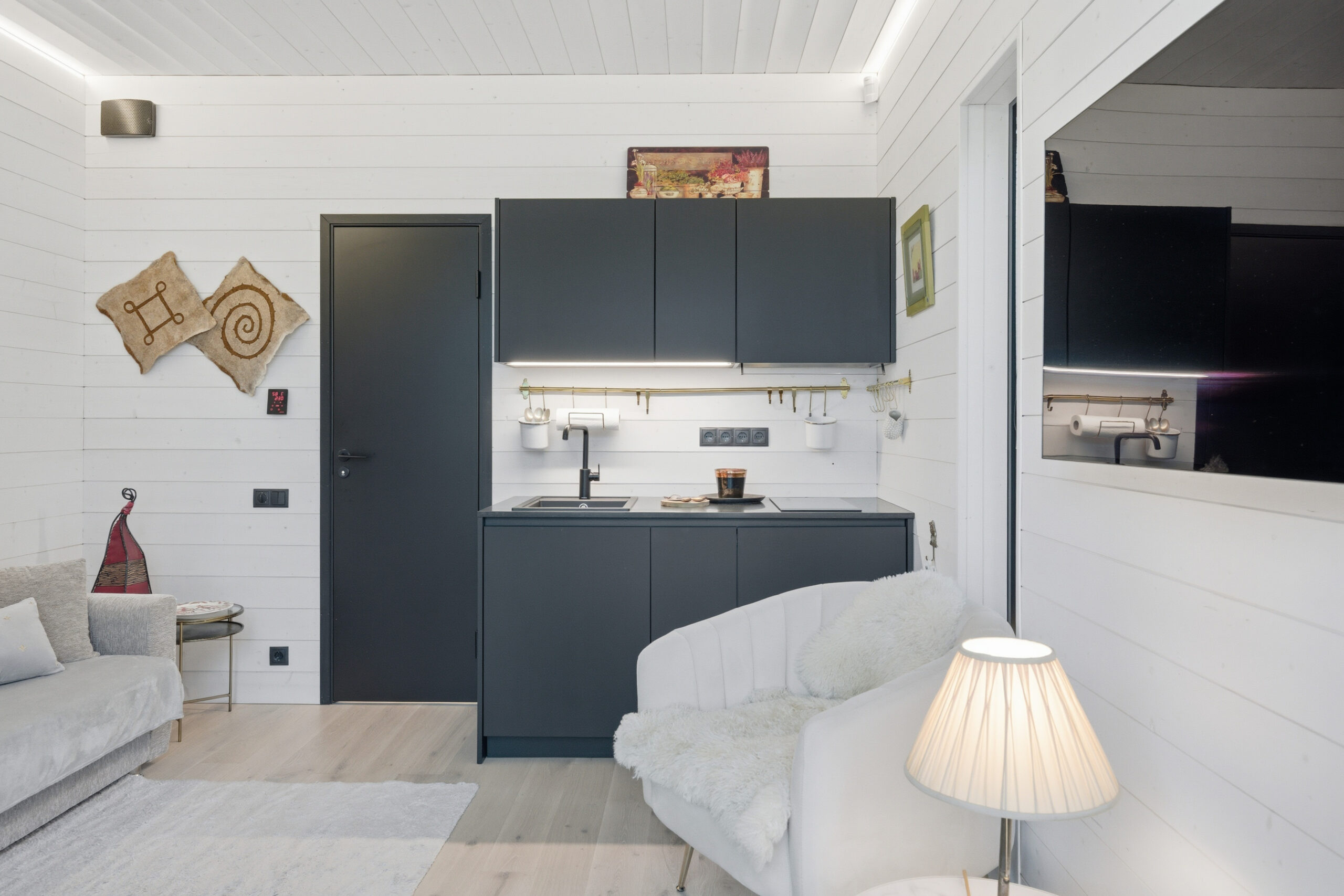

KITCHEN OPTIONS
Standard configuration
KODA in standard equipment comes with kitchen readiness – so you have more options to choose from. You can either buy your kitchen cabinetry from IKEA or ask a local carpenter to make a tailored to your needs kitchen furniture.
| When KITCHENETTE opted in, standard configuration includest: | |
|---|---|
| Cabinets finishing: | Laminate Formica® Collection, 18 mm, white/black |
| Sockets and LED lights | |

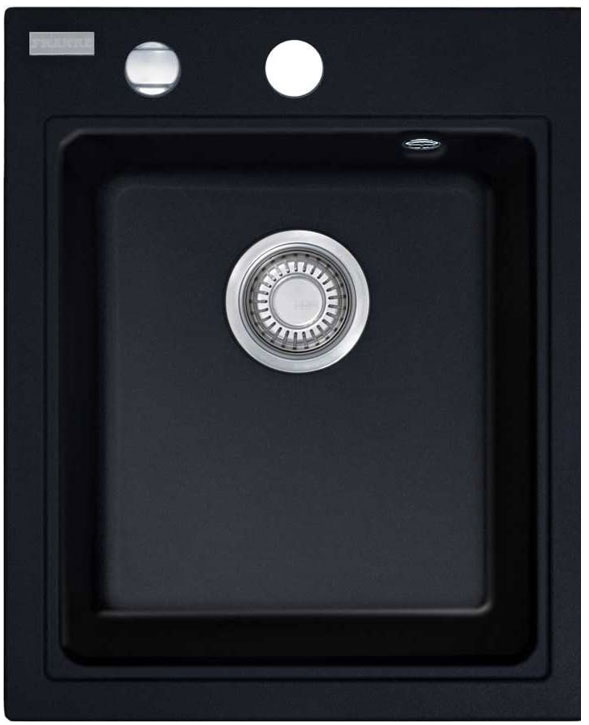

| Sink | Franke MARIS MRG 610-37 Fragranite® Sink Unit in Onyx (Black) |
| Mixer | |

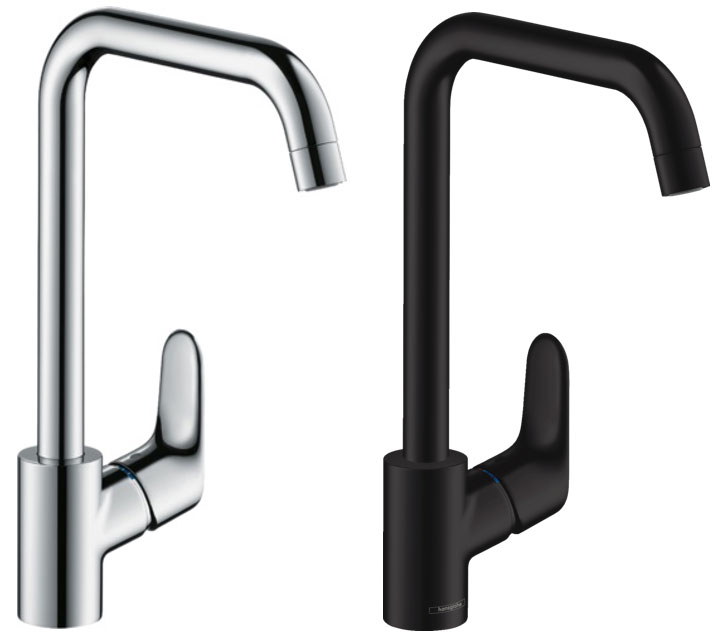

 | Hansgrohe Focus M41 black or chrome |
 | Franke MARIS MRG 610-37 Fragranite® Sink Unit in Onyx (Black) |
Premium configuration
You can choose fully equipped kitchenette made by Kodasema kitchen master with set of Premium appliances that fit into your KODA kitchen.
*Check Premium EXTRAS available for your preferred KODA model kitchen in configurator.
| Premium extras for sauna kitchenette | |
|---|---|
| Kitchen hood | Elica Era C 60, carbon filter, built in, 230-365 m3/h, 52-66 |
| Premium Mixer | |

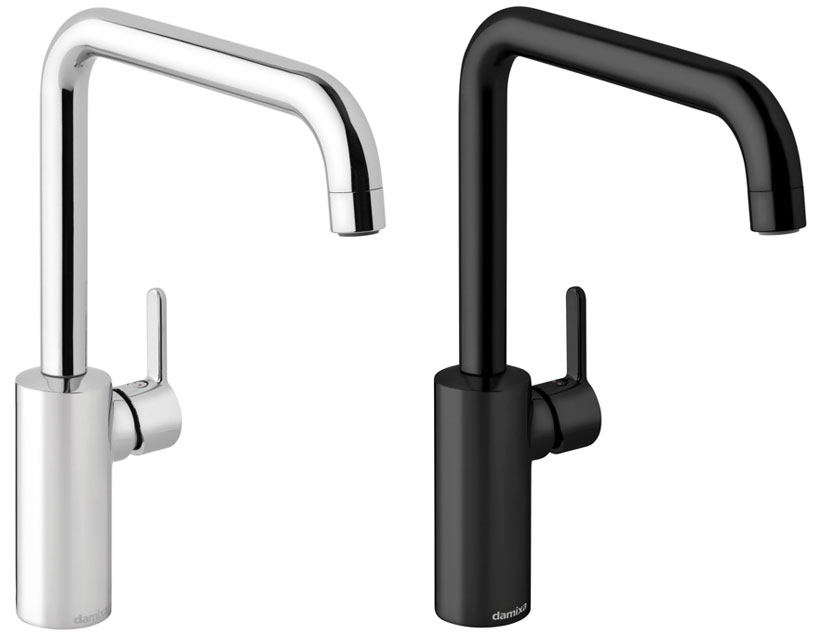

 | Damixa Silhouet black or chrome |
Check out our kitchen examples and create your liking
SAUNA and BATHROOM OPTIONS
*Model-specific variations may apply

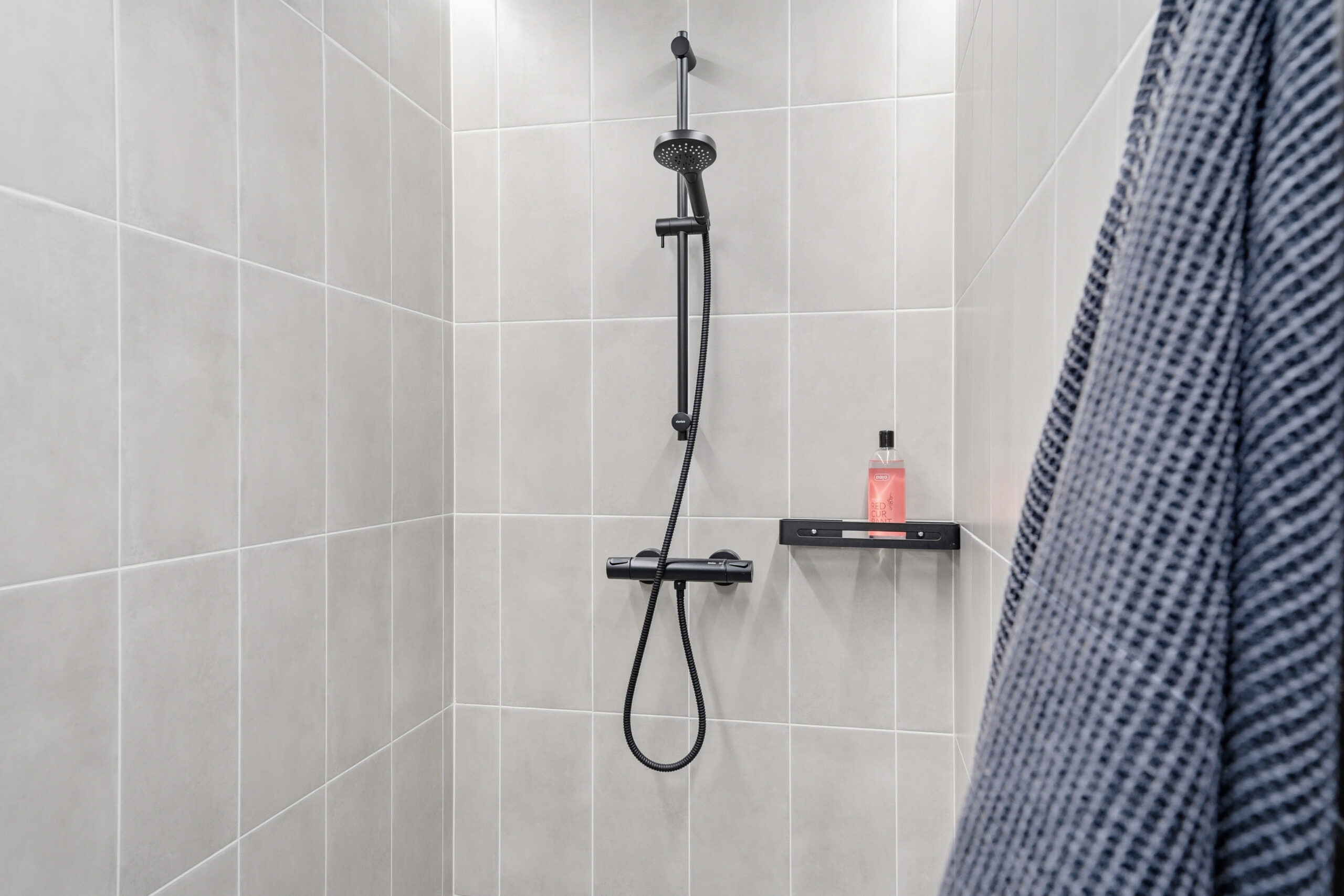

KODA houses come with fully finished bathrooms, thoughtfully designed for comfort and modern living. Each bathroom features a ventilation system, electric underfloor heating, LED lighting, and beautifully tiled walls. Standard sanitary fittings include a sink, mixers, a shower system, and a wall-hung toilet. To suit your aesthetic, mixers are available in elegant chrome or sophisticated black finishes.
All KODA model bathrooms can be further elevated with premium upgrades, including high-end mixers and shower systems in your choice of sleek chrome or bold black finishes, as well as a premium toilet for an added touch of sophistication.

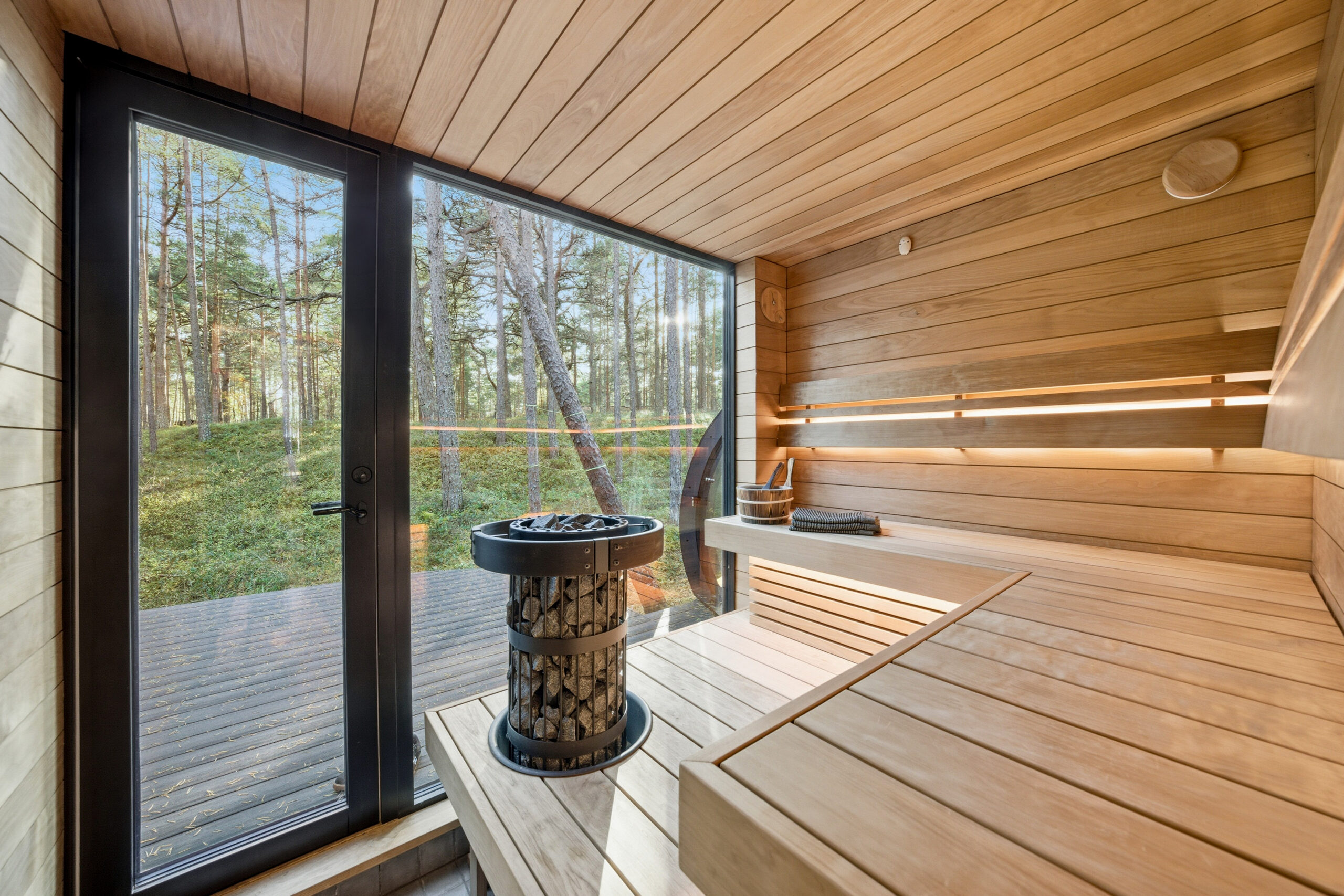

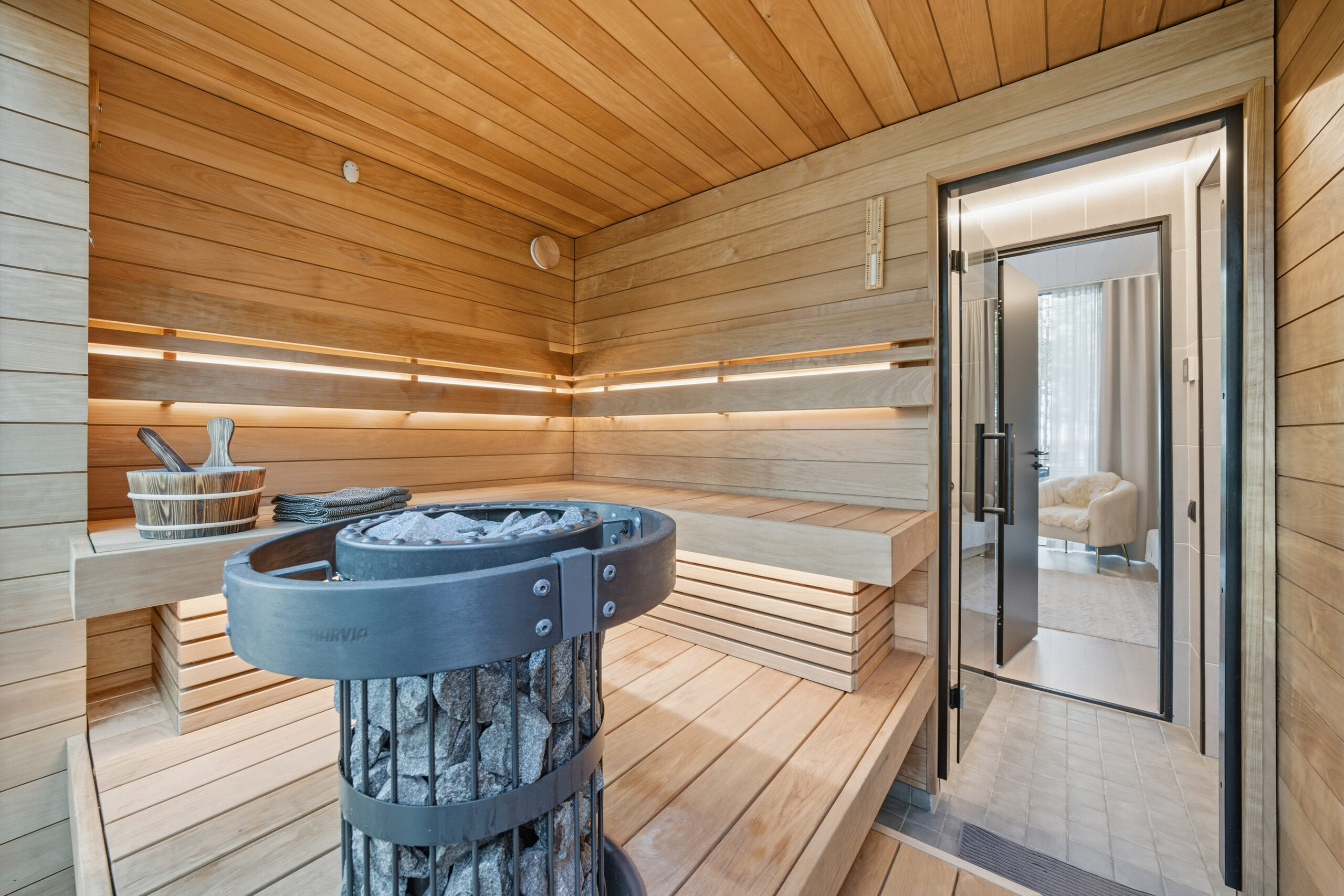

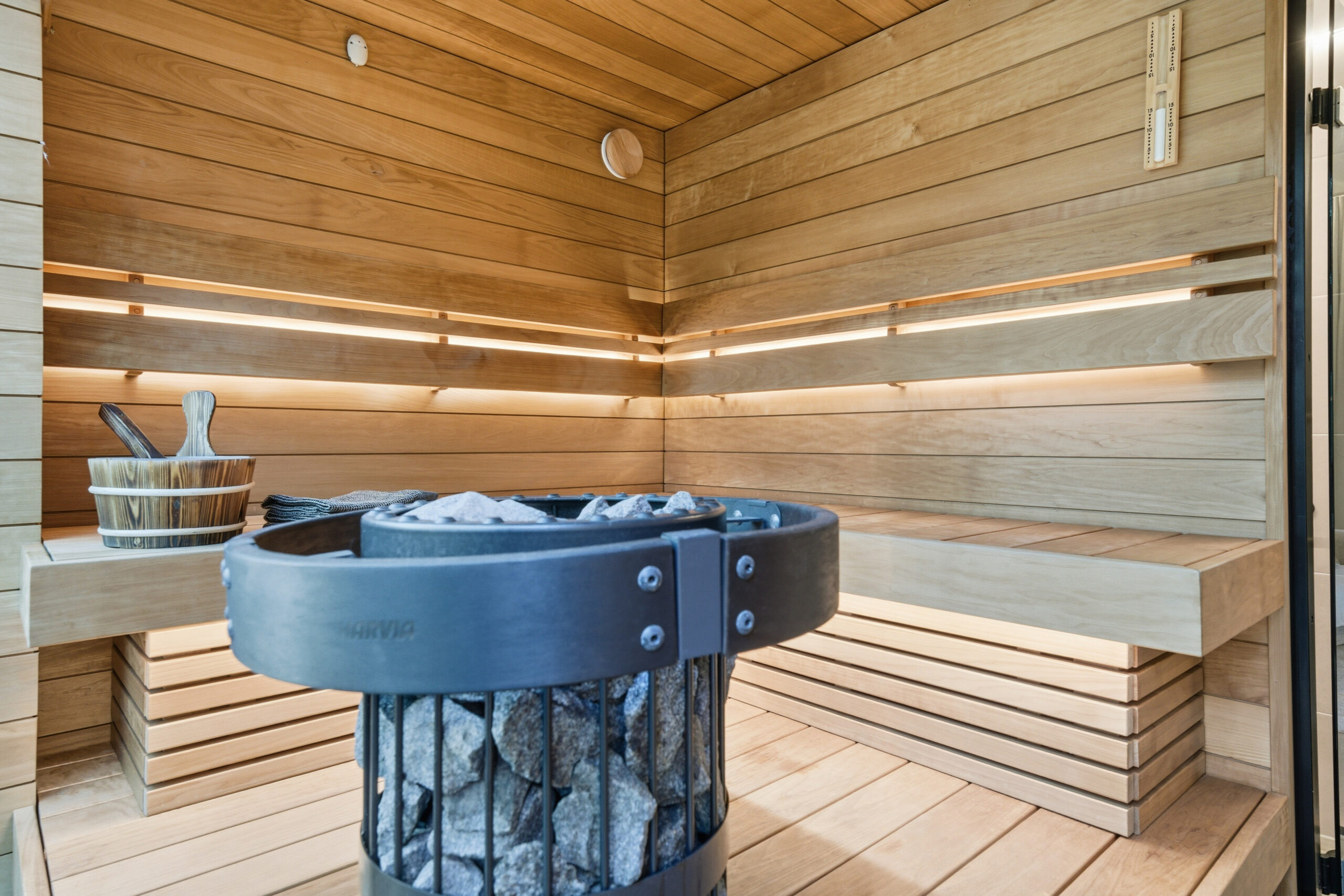

KODA Compact Luxury Sauna standard steam room includes electrical heater.
